Mill TC / Test Certificate Support
Product Range
Structural Steel
Structural sections and long products for frames, supports, platforms, equipment bases and fabrication work.
Ready StockCustom SizesThird Party InspectionExport Packing
Category: Ferrous & Non-Ferrous Metals
Structural Steel Specifications
Every order is checked for grade, dimension, surface condition and packing before dispatch. Supply can be arranged in standard lengths, cut lengths or fabrication-ready bundles.
| Forms | Angle, channel, beam, flat, tee, square bar and project structural sections |
|---|---|
| Standards | IS 2062, ASTM A36, EN, DIN and project specifications |
| Size Range | Standard market sections and custom cut lengths |
| Materials | Mild steel, carbon steel, stainless steel and special structural grades |
| Applications | Plant structures, pipe racks, platforms, skids, supports, railings and fabrication |
Value Added Services
- Cutting, beveling, threading or machining as applicable
- PMI, hardness, hydro, ultrasonic and dimensional inspection
- Material test certificates and third-party inspection coordination
- Domestic and export-safe packing with clear product marking
Available Materials
- MS IS 2062 E250 / E350
- ASTM A36 structural steel
- SS 304 / 316 structural sections
- Carbon steel and alloy project grades
- Galvanized or coated options on request
Selection Notes
Use stainless steel for corrosion resistance, carbon steel for general process piping, alloy steel for elevated temperature service, duplex grades for chloride environments and nickel alloys for severe chemical duties.

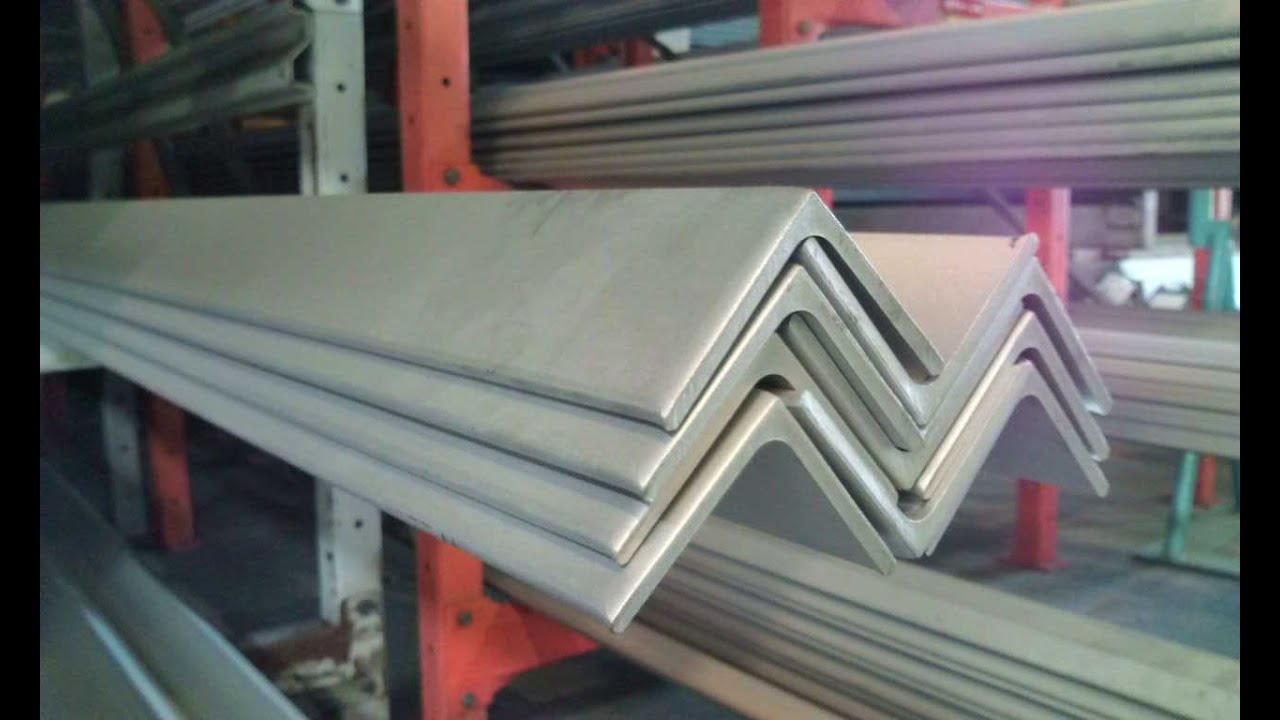

Ask For Grade Guidance| Product | SS / MS Angles |
|---|---|
| Grade | IS 2062 |
| Sizes Available | 25x25x3/5, 35x35x5, 40x40x5/6, 45x45x4/5/6, 50x50x5/6, 60x60x6/8, 65x65x6/8/10, 75x75x6/8/10, 80x80x6/8, 90x90x6/8/10, 100x100x6/8/10/12, 110x110x8/10/12, 130x130x10/12, 150x150x10/12, 150x150x16/20, 200x200x16/20 (mm) |

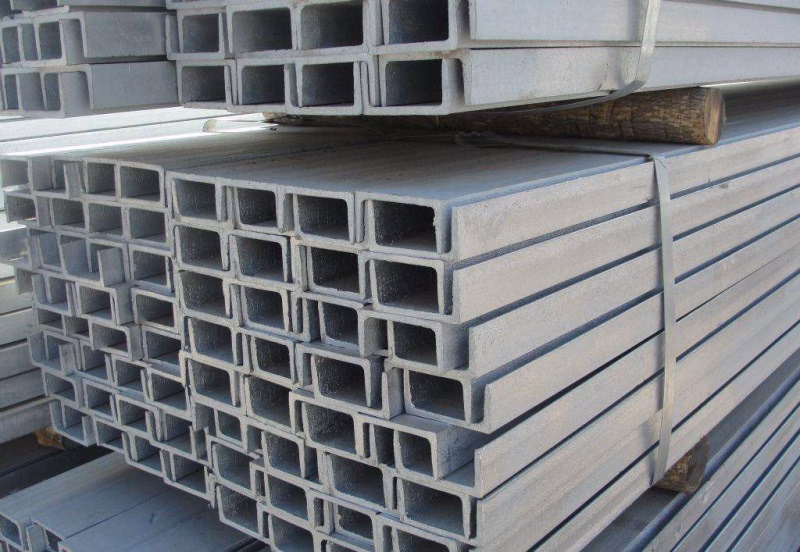

| Product | SS / MS Channel |
|---|---|
| Grade | IS 2062 |
| Sizes Available | 75x40, 100x50, 125x75, 150x75, 175x75, 200x75, 250x80, 300x90, 350x100, 400x100 (mm) |

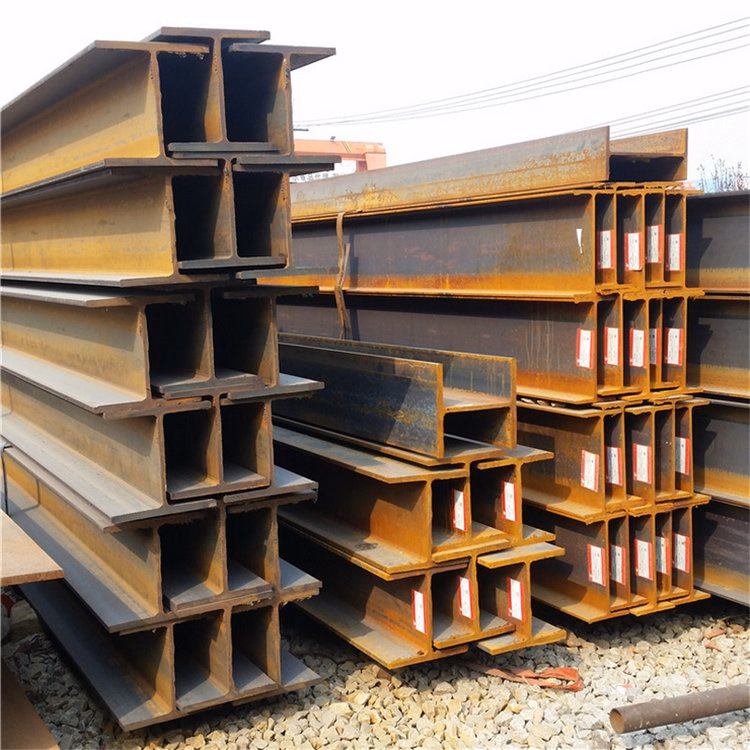

| Product | SS / MS Beam (Light, Medium, Standard) |
|---|---|
| Grade | IS 2062 |
| Sizes Available | 100x50, 125x70, 150x75, 175x85, 200x100, 250x125, 300x140, 350x140, 400x150, 450x150, 500x180, 600x210 (mm) |

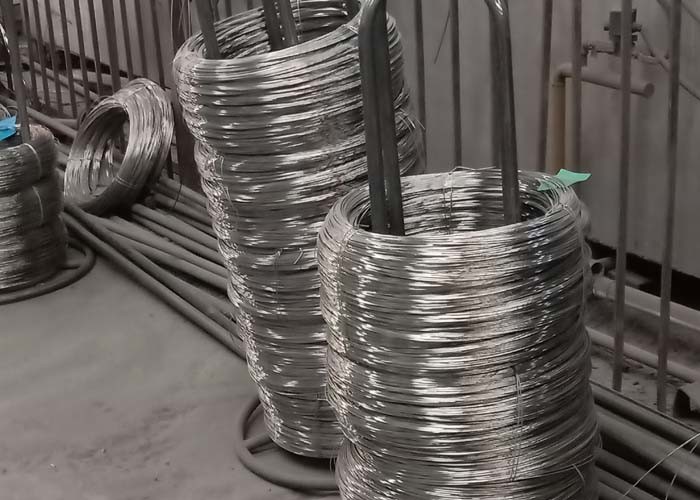

| Product | Wire Rods (SS / MS Rounds Bars) |
|---|---|
| Grade | Low Carbon - 5WR-14 / IS:2062 Gr. A |
| Size Range | 5mm to 250mm diameter |

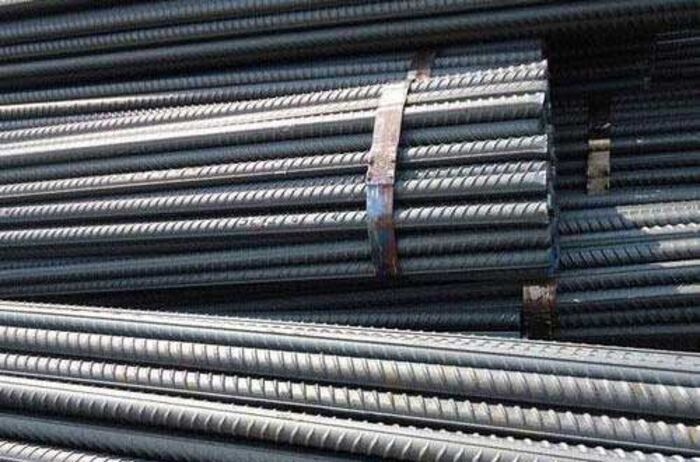

| Product | TMT Re Bars |
|---|---|
| Grades | FE 415 / FE 500 |
| Note | Available from various Primary & Secondary Manufacturers with Manufacturing Test Certificate. |
| SS / MS Flats | 21 x 6 mm to 300 x 16 mm |
|---|---|
| SS / MS Square Bars | 10 x 10 mm to 63 x 63 mm |
